In 1894 a very special discovery was made in a peat bog c. 100 km north of Jekatarinburg in the Urals. Gold miners discovered fragments of an originally possibly 5.3 m high wooden sculpture carved from a piece of larch. In addition to geometrical motifs, the truly monumental sculpture is decorated with eight human faces on its front – and back side. Missing clear analogies, the date of this exceptional sculpture was long uncertain and topic of research debate. Only in 2014 a series of radiocarbon dates finally resolved the issue: The Shigir idol dates to around 9,600 cal BC (according latest analyses (Zhilin et al. 2018).
The Shigir Idol (Museum Jekatarinburg, photos O. Dietrich).
At this point in time, there is only one other site that has produced human respectively human-like monumental depictions – Göbekli Tepe. There is a considerable geographic distance between both sites, however, which makes direct contacts and interaction not the most probable explanation for these apparent similarities. Even more, certain methodological issues have to be emphasised here: The Shigir bog has exceptionally good conditions for wood preservation, at Göbekli Tepe and other contemporary sites of the Urfa region, durable stone was chosen to produce monumental imagery (of course, the lack of preserved wooden images does not exclude their former existence, carving techniques visible with Göbekli Tepe’s and other site’s rich stone art may well have been developed in wood here too). We are thus looking at two very special areas and distinctive situations here, and other regions between both phenomenons may as well have been rich in comparable imagery – which is just not preserved.
If we travel south from Göbekli Tepe to the Middle Euphrates region, there are sites like Jerf el Ahmar, with ‘special buildings’ that have much in common with the Göbekli Tepe structures. Jerf el Ahmar is a Pre-Pottery Neolithic A / transition to PPN B site in northern Syria characterized by round and rectangular buildings with limestone foundations. There, large subterranean round buildings with benches along the walls have been discovered. And, noteworthily in the context of this discussion, these buildings included wooden posts. If these were decorated, remains unknown, but would certainly be a possibility worth consideration. It is important to keep this in mind when discussing such extraordinary finds and possibly far-reaching analogies: Much of the picture archaeology can draw today depends on original building style and the materials used – and surviving remains preserved to this day.
Zhilin, M., Savchenko, S., Hansen, S., Heussner, K., & Terberger, T. (2018). Early art in the Urals: New research on the wooden sculpture from Shigir. Antiquity,92(362), 334-350. doi:10.15184/aqy.2018.48
Plant food is a factor so far slightly neglected in research about Göbekli Tepe. We are now aiming to close this gap [read more here and here]. Preliminary results on grinding equipment from Göbekli Tepe and experimental approaches will be presented at this year´s Awrana (Association of Archaeological Wear and Residue Analysts, external link) conference at University of Nice Côte d’Azur on May 31, in a collaborative paper by Laura Dietrich, Oliver Dietrich, Julia Heeb and Nils Schäkel.
During the 10th and 9th millennia BC, at Göbekli Tepe in southeastern Anatolia, hunter-gatherers constructed the first monumental architecture of mankind. In an older phase, circular enclosures made up of up to 5.5m high pillars decorated richly, mainly with animal motifs, were erected, while in a younger phase rectangular buildings with smaller pillars were in use. Important questions regarding this site concern the way in which small-scale groups joined their forces for the massive construction work, creating a place strongly connected to their worldview, and how they secured their subsistence during the prolonged work at the site.
Until now, the focus was on the numerous finds of animal bones and hunting as subsistence strategy. This image may be biased by bad preservation conditions for plant remains, as more than 10.000 grinding stone were discovered at the site, reaching from flat slabs over deep bowls to mortars, pestles and handstones. At least in the younger phase of the site, a number of the square rooms could be interpreted as storage facilities, as they also contain large limestone vessels with capacities of up to 200 liters. Macroscopic and microscopic use wear hint at the use of the grinding stones for massive plant food processing. This interpretation is based on a comparison with experimentally manufactured objects. During the experiments, use-wear was related to shapes and to the grinding motions as important analytical parameters.

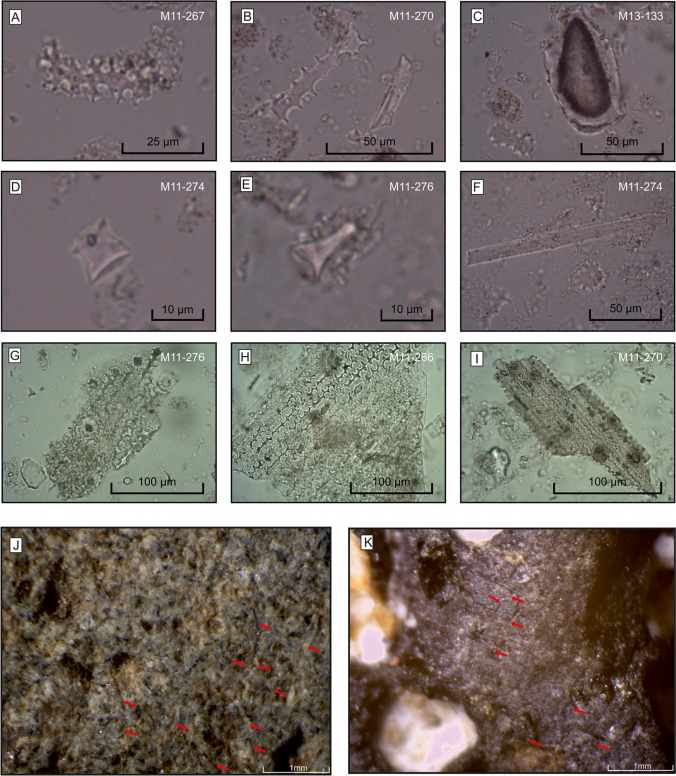

The paper aims to reveal the role of plant food at Göbekli Tepe, and linked with this, economic and social factors related to the construction and maintenance of this important site.
All archaeological finds of a site add to its history, but some can capture us with the underlying story. This is the case for an aurochs bone with an embedded flint projectile point fragment discovered during excavations at Göbekli Tepe some years ago.
That the aurochs was an important animal to these early Neolithic hunters becomes evident not only through the impressive number of its bones present in the enclosures’ filling (remains hinting at the consumption of enormous amounts of meat, most likely during feasts in the course of large-scale meetings and communal activities), but also due to its prominent role in Göbekli Tepe’s iconography (where recently the impressing depiction of what seems to be a dying or dead aurochs was reported).
In 2009, a humerus of an aurochs was found in the southwestern part of Enclosure D, more precisely in the last 10 cm of sediment covering the bedrock floor directly in front of the segment of the perimeter bench that connects Pillars 32, 33, and 38. Bones are frequent finds at Göbekli Tepe, and many of them can tell stories if ‘interrogated’ by archaeozoologists and archaeologists. But under closer examination, it became clear that this bone was special. It had the tip of the hunter’s arrowhead still embedded in it.
Aurochs humerus with embedded flint projectile point from Göbekli Tepe’s Enclosure D. (Photo: N. Becker, DAI)
Hunting trauma in bones in general, and embedded projectile points in particular, are very rare finds. There are several reasons for this situation. The most important one probably is that hunters would aim for soft tissue to rapidly kill dangerous big game like cattle. The shot at the Göbekli Tepe aurochs thus has to be considered a miss from the Neolithic hunter’s point of view. But, as often, things that went wrong in prehistory hold the potential to be very informative for archaeologists (see Pompeii, for example). In this case, the bone offers the possibility to reconstruct a certain moment in time roughly 12,000 years ago.
Aurochs humerus with embedded flint projectile point from Göbekli Tepe´s Enclosure D. Detail of the projectile point fragment (copyright DAI, photo N. Becker).
To do so, we have to examine the bone a little closer. First, there is some information to be gained about the unfortunate animal. The fused proximal epiphysis indicates an adult aurochs older than four years, while bone measurements illustrate that we are dealing with a cow. Put scientifically, the position of the point suggests that the projectile penetrated the Musculus cleidobrachialis and the M. infraspinatus, and probably also the M. deltoideus and M. triceps brachii covering the lateral side of the proximal humerus, and became lodged in the cranial part of the proximal epiphysis at the base of the Trochanter major, at an angle of about 90°. As such, the position of the tip indicates that the hunter must have stood to the right side or the right front of the animal and broadly at the same height. As shown by experiments and proven by ethnographical records, the maximum distance between hunters and big game prey is usually between 10 and 40 meters irrespective of using spears or bow and arrow. From distances larger than that, hit rates are low and all game within the reach would be on the run, if the first shot was a miss.
Hunters therefore try to get as near to the animals as possible. That the Göbekli hunters did not stand too far from his prey is also suggested by the fact that the impact was powerful enough to cut through the muscles overlying the humerus at this position and to get stuck in the bone. This shot was certainly not fatal but it at least impeded the animal. Since no traces of healing are visible on the damaged bone, it was hunted down soon after this hit. As mentioned, the shot can be considered a miss and was most likely aimed at the rib cage in order to hit the lungs and/or the heart – the most effective method when hunting middle-sized to large animals.
It is such finds that offer the rare opportunity to switch from sketching out the big lines of history to individual stories. Even if we do not have much more information on what happened exactly that day some 12,000 years ago, one can imagine how a group of hunters stalked the animal in the gallery woods surrounding smaller streams in the valleys around the Germus mountains. How they came face to face with the beast, maybe at a distance of no more than 10 m. How one of them aimed for the first shot, hit the large and dangerous animal, but not fatally. How others sprang to his aid to bring the angry opponent down. And finally, how the story of this particular hunt was retold for years at campfires.
More Information on this discovery can be found in the following article, available here (external link, text behind paywall):
Nadja Pöllath, Oliver Dietrich, Jens Notroff, Lee Clare, Laura Dietrich, Çiğdem Köksal-Schmidt, Klaus Schmidt, Joris Peters, Almost a chest hit: An aurochs humerus with hunting lesion from Göbekli Tepe, south-eastern Tukey, and its implications. Quaternary International. DOI: 10.1016/j.quaint.2017.12.003
The reason I haven’t posted so much in the last months was because the start of the project „Plant Food Management at Early Neolithic Göbekli Tepe“ was requesting a lot of preparations, which left me with few time for blog contributions (I’m tweeting my research step by step, though, under: @laura_dtrich).
The main aims of my research project is to reconstruct the use of plants in the food spectrum at Göbekli Tepe, the plant management strategies and the interaction between man and environment on one side, and to contribute to an explanation for the special character of the site through new insights from this point of view on the other side. The study of plant resources and plant food at Göbekli Tepe is of great importance to understand Early Neolithic subsistence in the Levant and, linked to this, economic, social and biological processes that shaped our modern world. The site covers a long time span, in which the Neolithisation, i.e. the domestication of plants and animals, took place, until a point of no return to the world of hunters and gatherers was reached.
Göbekli Tepe is a special site, most probably a central site for meetings, and a cultic place with monumental architecture. It is not likely, at the current state of research, to interpret the site as a settlement (at least not as a “classic” settlement with populations living permanently at the site). But the more or less permanent presence of groups of people, erecting monumental architecture and/or maintaining it has to be assumed, and their subsistence was most likely an important issue. Also, social events like feasting could have played an important role at the site (Dietrich et al. 2012: O. Dietrich, M. Heun, J. Notroff, K. Schmidt, M. Zarnkow, The role of cult and feasting in the emergence of Neolithic communities. New evidence from Göbekli Tepe, south-eastern Turkey. Antiquity 86, 2012, 674-695).
Plants seem to be a more stable food resource compared to the partly migratory hunted animals, and the presence of an impressive quantity of storage vessels is certainly a hint for the massive storage of plant food at Göbekli Tepe. Different approaches for a reconstruction environments and plant use exist, for example through pollen and phytolith analysis. These methods can be theoretically used, but still have some methodological problems to be solved. The reconstruction of plant food is largely based on the botanical analysis of the plants discovered at a site (in significant contexts). But objects like grinding stones can make a significant contribution to our knowledge on plant use. Macrobotanical analysis has shown the use of einkorn, emmer, barley, pistachio and almonds at Göbekli Tepe (Neef 2003: R. Neef, Overlooking the Steppe-Forest: A Preliminary Report on the Botanical Remains from Early Neolithic Göbekli Tepe (Southeastern Turkey). Neolithics 2, 2003, 13-16). However, there are only very few plant remains from Göbekli Tepe, and they are also badly preserved. The bad preservation conditions for such remains will inevitably lead to a very biased image regarding plant food at the site.
Given this situation, objects for the preparation and storage of food are a much more objective method to quantify the actual use of plant resources. There are over 10.000 grinding stones from the site. It is known from ethnographically sources that grinding stones were used for processing numerous foodstuffs (cereals, nuts, legumes, herbs, even meat, cheese or grasshoppers) but also minerals (salt, ochre), sugar and even animal skins. The processing of meat, ochre and animal skins was observed in several Epipalaeolithic sites in the Levant (Dubreuil et al 2015: L. Dubreuil, D. Savage, S. Delgado, H. Plisson, B. Stephenson, I de la Torre, Use-wear analysis of ground stone tools: discussing our current framework, in J. Marreiros, J. Bicho (Eds.) Use-wear handbook 105–158. Berlin, Springer 2015). One of the main aims of analyzing grinding stones is to deduce exactly their functions, and that can be done by analyzing their surface with the microscope for usewear; 3 D models are also useful tools for quantifications of use. Grinding different materials will produce different wear on the surface. The specific patterns of usewear traces can be compared with experimental objects (blog contribution coming up), used for grinding just one material. This is one of the best and most exact ways to deduce the function of grindings stones and, through statistically and stratigraphically secured observations, the amount of plant food in daily life.
According to (very) preliminary results, numerous grindings stones were used at Göbekli Tepe for the processing of cereals and nuts, and very few for ochre and animal skins. But a lot of work will follow to put these observations on a statistically firm basis, and – given the huge amount of information and different methods of analysis – it takes definitely more than one scientist to make (10000) stones speak!
So here is my hive mind, which made my research possible this year: Hajo Höhler-Brockmann (German Archaeological Institute), Julia Meister (Free University of Berlin), Julia Heeb (Village Museum Düppel) and Nils Schäkel (Free University of Berlin) and of course Oliver.
And here is a short history in images from the last months:
1: Sorting grinding stones in the excavation house… (photo: J. Meister)
2: Here is just a part of them! (photo L. Dietrich)
3: Analyzing the use wear with the microscope, making 3D-models and taking samples from the surface: me (left), Julia (right), Hajo (behind).
4: Handstone in 3D (model H. Höhler-Brockmann, copyright DAI).
4: Handstone in 3D with analysis of roughness (model H. Höhler-Brockmann, copyright DAI).
4b: …and Hajo taking photos (photo J. Meister).
5: Microscopical use-wear of a handstone used most probably for processing einkorn (photo L. Dietrich),
6: …and me analyzing it (photo J. Meister).
7a: Complementary to use wear: sediment samples (photo J. Meister),
7b: …and Julia taking them (photo L. Dietrich)
8: …but also resting in the sunset after a lot of work done! (photo L. Clare)
9a: Back in Berlin: producing experimental grinding stones (photo L. Dietrich),
9b: …of the type used at Göbekli Tepe (photo N. Schäkel),
9c: …grinding einkorn, grinding, and grinding (photo B. Kortmann),
10: …and starting to study use-wear again (photo B. Kortmann)!
And finally: preparing first papers…which is the most exciting part of research!
This text has been published originally (and in slightly different form) as a short contribution by Oliver Dietrich and Klaus Schmidt (†) in Neo-Lithics [external link] 1/17, 43-46.
The most striking aspects of Göbekli Tepe are without question the monumentality of the site and the rich imagery. Besides the reliefs on the pillars, there is a wide range of stone sculptures and figurines. Klaus Schmidt, who excavated the site for 20 years, has dedicated several papers to this find group (Hauptmann and Schmidt 2007; Schmidt 1998; 1999; 2008; 2009; 2010); a comprehensive synthesis is still missing (for the anthropomorphic sculpture Dietrich et al. forthcoming). A total of 149 sculptures has been found to date at Göbekli Tepe. Of these, 86 depict animals, 38 humans, four anthropomorphic masks, three phalli, nine are human-animal composite sculptures and a further nine are indeterminable. Many of the sculptures are in a fragmentary state, which may have its reason in social practises connected to the early Neolithic imagery – including intentional fragmentation and deposition of a selection of fragments, mostly heads in meaningful contexts next to the pillars (Becker et al. 2012; Dietrich et al. forthcoming). Many of the fragments may have been originally part of sculptures in the shape of the ‘Urfa Man’, the oldest life-sized human sculpture currently known, discovered during construction work at Urfa-Yeni Mahalle (Hauptmann 2003; Schmidt 2010. 247, 248-249). But there is also a range of other types, and the current contribution is dedicated to one of those.
During the 2012 autumn excavation season at Göbekli Tepe, a small figurine (5,1×2,3×2,7 cm) was handed in as a surface find from the north-western hilltop of the tell (Fig. 2). The motif of the figurine is an ithyphallic person sitting with legs dragged toward his body on an unidentifiable object. He is looking up and grasping his legs. Between the legs, a large erect phallus is depicted (Fig. 3), and a quadruped animal is sitting on the person´s left shoulder (Fig. 4). As one half of the figurine has a thick layer of sinter, the question whether there originally was another animal on the other shoulder remains open. The animal species cannot be determined with security neither, but the general form is consistent with depictions of large wildcats or bears at Göbekli Tepe (e.g. Schmidt 1999. 9-10, nr. A8). The material of the sculpture is unusual for the site on the other hand. Nearly all sculptures and figurines so far known from Göbekli Tepe were made from local limestone. The new figurine is most likely made from nephrite. The figurine is perforated crosswise in its lower part. A functional interpretation for this detail is hard to give as one perforation would have sufficed to wear it as a pendant for example. Maybe the figurine was meant to be fixed to a support.
The seated figurine from Göbekli Tepe (copyright DAI, Photo N. Becker).
The unclear find circumstances and the unusual material raise the question of the figurine´s provenance. The sinter layer is a characteristic for finds from Göbekli Tepe (and clearly indicates that the figurine was originally buried with the right side down), but could have formed of course also at another site with similar natural conditions. There is however an older find that could represent a fragment of the same figurine type. This fragment, comprising head and shoulder of a small figurine (3,9×4.0x2.8cm) made from brownish limestone, was discovered in 2002, also on the surface of the tell (Fig. 5). There are two more examples of larger seated sculptures from Göbekli Tepe. A first depiction of a seated person (h. 32.5cm; Fig. 6), badly preserved, was found on the surface of the tell, too (Schmidt 1999. 9, Plate. 1/1). Here, the hands are brought together under the belly, the gesture reminds of the ‘Urfa Man’ who most likely is presenting a phallus (Hauptmann 2003), but unfortunately the lower part of the sculpture is not preserved. A snake could be depicted crawling up the back and head of the sculpture, but this remains uncertain, too. Another example (h. 44cm) was found more recently in a deep sounding in the northwestern depression of the tell (Area K10-55, Locus 21.2; Fig. 7). The find context is still under evaluation, much speaks for a PPN B date so far. The preservation of this sculpture is also rather bad, the lower part is missing again. Both examples show some clear differences compared to the figurine: the arms are folded in front of the body, there is no animal on the shoulder, and the persons seem to sit on the ground, not on some object. As the lower part is missing we cannot be sure whether a phallus was depicted. Summing up, it seems nevertheless reasonably sure that the new figurine is from Göbekli Tepe – and represents a type, or variant, not known so far in the site´s sculptural inventory.
Date and analogies
Without knowledge of the original find context, or analogies from clear contexts, there is no possibility to attribute the new figurine to one of Göbekli Tepe´s architectural horizons – Layer III with the PPN A and possibly early PPN B large stone circles formed of T-shaped pillars, or Layer II with early/middle PPNB rectangular or sub-rectangular buildings. Offsite analogies also seem to be scarce.
29 similarly seated limestone figurines are known from Mezraa-Teleilat´s phase IIIB, i.e. the Late PPN B / early Pottery Neolithic transition (Özdoğan 2003. 515-516, Figures 1a-c, 2b-c, 4, 5; Özdoğan 2011. 209, Figures 14-21; Hansen 2014: 271, Figure 9). One more find can be added to this group, a more recently published stone figurine from Çatalhöyük (Hodder 2012. Figure 14b; Hansen 2014. 271). Although the overall form is very similar, the figurines from Mezraa-Teleilat and Çatalhöyük are much more abstracted, the former are sitting on armchair-like seats, wear robe-like clothes and in some cases belts, and examples with animals on the shoulders seem to be missing. As the latest finds from Göbekli Tepe date to the middle PPN B, the figurine must be older than the finds from Mezraa Teleilat and Çatalhöyük. Whether the naturalistic sculpture(s) from Göbekli Tepe can be regarded as the prototypes for this group and thus also a similar meaning could be proposed, cannot be answered with security for now.
Further analogies are hard to find. The much later standing female clay figurines holding leopard cubs from Hacılar (e.g. Mellaart 1970. Figure 196-197), and the so-called ‘Mistress of Animals’, a female figurine seated on a leopard and holding a leopard cub (Mellaart 1970. Figure 228), or, in another case, seated on two leopards and holding their tails (Mellaart 1970. Figure 229) are different in gesture and topic.
The meaning of the figurine from Göbekli Tepe remains enigmatic. The finds from Mezraa Teleilat and Çatalhöyük seem to be the best analogies for now. But in contrast to this group, the find discussed here has the animal on the shoulder (or one on each shoulder originally?) as an important characteristic. There are several examples of animal-human composite sculptures from Göbekli Tepe. But they show animals – birds and quadrupeds – on the heads of people, grabbing them with their claws, maybe carrying the heads away (e.g. Beile-Bohn et al. 1998.66-68, Figure 30-31; Becker et al. 2012.35). This kind of iconography most likely relates to Neolithic death cult or beliefs (Schmidt 1999.7-8). The new sculpture, with one or two animals in the shoulder area, does not fit well into this group. The animal is clinging to the shoulder in a crouched position, there is no indication of aggression or attack (Fig. 4), or a reaction of the sitting person. The animal could thus have a completely different meaning. We could be dealing with a more metaphorical relationship between man and animal here.
At Göbekli Tepe, animal symbolism seems to have an emblematic/totemic connotation in some cases. In every one of the monumental enclosures of Layer III, one animal species is dominant by quantity of depictions (Notroff et al. 2014.97-98, Fig. 5.9). In Enclosure C for example boars have this role, in Enclosure A snakes, Enclosure B has many undecorated pillars, but foxes are more frequent, while Enclosure D is more diverse, with birds and insects playing an important role. Given this background, one hypothesis would be that the animal characterises the person depicted in the figurine as a member of a certain group.
The other important characteristic of the depiction is the prominent erect phallus. Göbekli Tepe´s iconography is generally nearly exclusively male (e.g. Dietrich and Notroff 2015.85), and the phallus features prominently in several depictions of animals and humans. For example, a headless ithyphallic body is depicted on Pillar 43 amongst birds, snakes and a large scorpion (Schmidt 2006). Although the central pillars of the large enclosures are clearly marked as human through the depiction of arms, hands, and in the case of Enclosure D also items of clothing, their sex is not indicated. An erect phallus however is a prominent feature of the foxes depicted on several of the central pillars. There are also a few phallus sculptures from the site (e.g. Schmidt 1999.9, Plate 2/3-4).
It is hard to say whether all these diverse depictions / contexts share a similar basic meaning, or a multitude of meanings is implied. There is a vast ethnographic and historic repertoire of phallic depictions in the context of power, dominance, aggression, marking of boundaries/ownership, and apotropaism (e.g. Sütterlin-Eibl-Eibesfeldt 2013 with bibliography). Phallic symbolism is also often integrated in rites of admission in social groups. The association of animal and phallic symbolism in the sitting (watching?) figurine could hypothetically hint at such rites of admission, it could be a mnemonic object illustrating an aspect/moment of the rituals involved. However, further finds from secure and informative contexts from Göbekli Tepe, or elsewhere, should be awaited to shed some more light on this new figurine type.
Becker N., Dietrich O., Götzelt Th., Köksal-Schmidt Ç., Notroff J., Schmidt, K. 2012. Materialien zur Deutung der zentralen Pfeilerpaare des Göbekli Tepe und weiterer Orte des obermesopotamischen Frühneolithikums. Zeitschrift für Orient-Archäologie 5: 14-43.
Beile-Bohn M., Gerber, C., Morsch, M. Schmidt K. 1998. Neolithische Forschungen in Ober-mesopotamien. Gürcütepe und Göbekli Tepe. Istanbuler Mitteilungen 48: 5-78.
Dietrich O., Notroff, J. 2015. A sanctuary, or so fair a house? In defense of an archaeology of cult at Pre-Pottery Neolithic Göbekli Tepe. In N. Laneri (ed.), Defining the Sacred: Approaches to the Archaeology of Religion in the Near East. Oxbow. Oxford: 75-89.
Dietrich, O., Köksal-Schmidt, Ç., Notroff, J., Schmidt, K. 2013. Establishing a Radiocarbon Sequence for Göbekli Tepe. State of Research and New Data. Neo-Lithics 1/13: 36-41.
Dietrich, O., Notroff, J., Schmidt, K. 2017. Feasting, social complexity and the emergence of the early Neolithic of Upper Mesopotamia: a view from Göbekli Tepe. In R. J. Chacon, R. Mendoza (eds.). Feast, Famine or Fighting? Multiple Pathways to Social Complexity. Springer. New York: 91-132.
Dietrich, O., Dietrich, L., Notroff, J. Forthcoming. Anthropomorphic imagery at Göbekli Tepe. In J. Becker, C. Beuger, B. Müller-Neuhof (eds.), Iconography and Symbolic Meaning of the Human in Near Eastern Prehistory. Workshop Proceedings 10th ICAANE in Vienna, Harrassowitz Verlag. Wiesbaden.
Hansen, S. 2014. Neolithic figurines in Anatolia. In M. Özdoğan, N. Başgelen, P. Kuniholm (eds.), The Neolithic in Turkey 6. 10500-5200 BC: Environment, Settlement, Flora, Fauna, Dating, Symbols of Belief, with Views from North, South, East and West. Archaeology and Art Publications. Istanbul: 265-292.
Hauptmann, H. 2003. Eine frühneolithische Kultfigur aus Urfa. In M. Özdoğan, H. Hauptmann, N. Başgelen (eds.), From villages to towns. Studies presented to Ufuk Esin. Archaeology and Art Publications: Istanbul: 623-636.
Hauptmann, H., Schmidt K. 2007. Die Skulpturen des Frühneolithikums. In Badisches Landesmuseum (ed.), Vor 12.000 Jahren in Anatolien. Die ältesten Monumente der Menschheit. Theiss Verlag. Stuttgart: 67-82.
Hodder, I. 2012. Renewed work at Çatalhöyük. In M. Özdoğan, N. Başgelen, P. Kuniholm (eds.), The Neolithic in Turkey 3. Central Turkey. Archaeology and Art Publications. Istanbul: 245-277.
Mellaart, J. 1970. Excavations at Hacılar (2). University Press. Edinburgh.
Notroff, N., Dietrich, O., Schmidt, K. 2014. Building Monuments – Creating Communities. Early monumental architecture at Pre-Pottery Neolithic Göbekli Tepe. In J. Osborne (ed.), Approaching Monumentality in the Archaeological Record. SUNY Press. Albany: 83-105.
Özdoğan, M. 2003.A group of Neolithic stone figurines from Mezraa-Teleilat. In M. Özdoğan, H. Hauptmann and N. Başgelen (eds.), From villages to towns. Studies presented to Ufuk Esin. Archaeology and Art Publications. Istanbul: 511-523.
Özdoğan, M. 2011. Mezraa-Teleilat. In: M. Özdoğan, N. Başgelen, P. Kuniholm (eds.), The Neolithic in Turkey 2. The Euphrates Basin. Archaeology and Art Publications. Istanbul: 203-260.
Schmidt, K. 1999. Frühe Tier- und Menschenbilder vom Göbekli Tepe. Istanbuler Mitteilungen 49: 5-21.
Schmidt, K. 1998. Beyond daily bread: Evidence of Early Neolithic ritual from Göbekli Tepe, Neo-Lithics 2/98: 1-5.
Schmidt, K. 2006. Animals and a Headless Man at Göbekli Tepe. Neo-Lithics 2/2006: 38-40.
Schmidt, K. 2008. Die zähnefletschenden Raubtiere des Göbekli Tepe. In: D. Bonatz, R. M. Czichon, F. Janoscha Kreppner (eds.), Fundstellen. Gesammelte Schriften zur Archäologie und Geschichte Altvorderasiens ad honorem Hartmut Kühne. Harrassowitz Verlag. Wiesbaden: 61-69.
Schmidt, K. 2009. Göbekli Tepe – eine apokalyptische Bilderwelt aus der Steinzeit. Antike Welt 4: 45-52.
This is the English version of a text published by Oliver Dietrich and Jens Notroff in the latest issue of Aktüel Arkeoloji [external link].
Our knowledge of the early Neolithic of Upper Mesopotamia has undergone dramatic changes in the last three decades. The region long held a peripheral role in research on this period. Ever since the seminal work of K. Kenyon at Jericho, the roots of food producing were sought in the Southern Levant. Not only was the traditional differentiation of the Pre-Pottery Neolithic in an earlier PPN A (c. 9600-8800 cal BC) and a later PPN B (c. 8800-7000 cal BC) devised at Jericho, but the existence of a wall and the famous tower seemed to be evidence for a strikingly early hierarchized society living in a ‘town’. The function of wall and tower have been heavily disputed later on, as has the attribution ‘town’, and the role of the Southern Levant as the core area of Neolithization.
With the influential research of L. and R. Braidwood at Jarmo, the focus of archaeological studies into the earliest Neolithic shifted to the northeast of the ‘Fertile Crescent’, or, as the Braidwoods put it, its ‘hilly flanks’. In recent years, it has become clear that the region encompassed between the middle and upper reaches of Euphrates and Tigris and the foothills of the Taurus Mountains has the potential to be a cradle of the new way of life that we call the Neolithic. The distribution areas of the wild forms of einkorn and emmer wheat, barley and the other ‘Neolithic founder crops’ overlap here, and the transition of the two wheat variants to domesticated crops has been pinpointed to this area. But it is especially one site in this region that has triggered paradigmatic changes in our views on early Neolithic society.
The tell of Göbekli Tepe is situated about 15 km northeast of the modern town of Şanlıurfa on the highest point of the Germuş mountain range. With a height of 15 m, the mound covers an area of about 9 ha, measuring 300 m in diameter. Neolithic artefacts were first recognized during a combined survey by the Universities of Chicago and Istanbul in the 1960s, but the architecture hidden by the mound remained unrecognized until its discovery in 1994 by Klaus Schmidt from the German Archaeological Institute. Since then annual excavation work has been conducted.
Aerial view of Göbekli Tepe (copyright DAI, Photo M. Morsch).
During excavation work, a rough stratigraphical schema has been established. The older Layer III with monumental architecture consisting of 10-30 m wide circles formed by huge monolithic pillars in a distinct T-shape was dated tentatively to the PPN A /early PPN B. The pillars, reaching a height of up to 4 m, are interconnected by walls and benches which define the inner and outer spaces of the enclosures. They are always orientated towards a central pair of even larger pillars of the same shape. Depictions of arms and hands on some of them indicate their anthropomorphic character. The pillars are richly decorated with reliefs showing mainly animals, and there also is a large number of limestone sculptures depicting animals and humans from the enclosures. After the end of their use, the circular buildings of Layer III were backfilled intentionally.
A younger layer is superimposed on this monumental architecture in some parts of the mound. This Layer II was dated to the early and middle PPN B. Smaller rectangular buildings of about 3 x 4 m with terrazzo floors are characteristic for this phase. They may be understood as minimized versions of the older monumental enclosures, as they share a common element – the T-shaped pillars. However, number and height of the pillars are considerably reduced: now often only two small central pillars are present, the largest among them not exceeding a height of 2 m. There are even rooms without any pillars. As with the large enclosures, no traces of domestic activities, e.g. hearths or ovens, have been detected so far. Thereafter, building activity at Göbekli Tepe seems to have come to an end. The uppermost Layer I consists of the surface soil resulting from erosion processes as well as a plough horizon.
Göbekli Tepe, overview (copyright DAI, Photo E. Kücük).
The monumental enclosures are the most impressive part of Göbekli Tepe’s archaeology. A geophysical survey, including ground-penetrating radar confirmed that these enclosures were not restricted to a specific part of the mound but existed all over the site. More than ten enclosures were located on the geophysical map in addition to the nine already under excavation – the latter designated A to I in order of their discovery. Five of these structures, A, B, C, D and G, were unearthed in the main excavation area at the mound’s southern depression; one, Enclosure F, at the southwestern hilltop; Enclosure H and I in the northwestern depression, and another one, Enclosure E, on the western plateau. Göbekli Tepe, at least in the older phase, is thus no domestic site with some special buildings, it is a site made up exclusively of special buildings and strongly connected to Neolithic (symbolic and most likely religious) beliefs.
View of Göbekli Tepe’s so-called main excavation area, Enclosure D in the front. (Copyright German Archaeological Institute, Nico Becker)
This symbolic world and Göbekli Tepe at its center clearly challenge conventional views on the organization, creative possibilities and potential of hunter-gatherers. This leads to the question how highly mobile hunter-gatherer groups were able to create a monumental site like Göbekli Tepe, and what repercussions this large-scale project may have had on their society.
Indicators for social differentiation
At Göbekli Tepe the enclosures of Layer III consist of several large megalithic elements cut from the surrounding limestone plateaus. The setting of the Neolithic quarries is demonstrated by numerous traces, between them an unfinished T pillar with a size of about 7 m and volume of 20 m³. The central pillars of Enclosure D weigh 10 metric tons each, and the pillars in the circle are only slightly smaller. Cutting, decorating, and transporting them is not a small task. There would of course also be the possibility that the enclosures were erected and constructed in the course of a longer period, but research into their building history does not seem to indicate this. On the other hand there is ample evidence for revisited work in already existing enclosures, for ongoing rearrangement, repair, depletion and re-use of some pillars in other enclosures. Consistent and intense work at thus seems very probable there.
Unfinished T-pillar in the quarries of Göbekli Tepe, tell in background. (Copyright German Archaeological Institute, Nico Becker)
There is some evidence for more than one group of people involved in construction activity. The image range of the different enclosures is far from random. In Enclosure A snakes are the dominating species, in Enclosure B foxes are frequent, in Enclosure C many boars are represented, while Enclosure D is more varied, with birds playing an important role. A possible connection of these animals to totems of different clans working at Göbekli Tepe is a possible line of interpretation which should be explored in future research.
To sum up, there is reason to believe that larger groups of people were active at Göbekli Tepe. Planning, organization and coordination of construction work were obviously necessary, as well as a mode to gather the needed workforce which most probably outnumbers the members of a single band or even a local group of hunter-gatherers. Some clues to the reasons people gathered at Göbekli Tepe come from the filing material of the enclosures. The fill material consists of limestone rubble, bones, fragments of stone artifacts and flint debitage (tools are rarer); its quite homogenous character makes the whole process of backfilling almost resembling a burial. Enclosure D alone comprised nearly 500 cubic meters of debris. With traces of permanent settlement absent, this readily leads to the idea of large, ritualized ‘work feasts’ rooted in the belief systems of the people congregating there. Large amounts of wild game were hunted and consumed. Feasting, respectively the organization of large feasts, is known ethnographically as a method to accumulate influence, to create hierarchies, and ultimately to exercise power over others. Yet there are even further indicators for social inequality in the early Neolithic archaeological record.
Limestone head from Göbekli Tepe, supposedly part of a sculpture similar to ‘Urfa Man’ (Photo: N. Becker, DAI).
A general impression of the existence of hierarchical concepts within the groups constructing the Göbekli Tepe enclosures is conferred by the layout of these structures already. The smaller pillars in the circle walls are looking towards the larger central pair of pillars. Whatever gathering is depicted here, it does not seem to be one of equals. Another differentiation seems to exist between the clearly anthropomorphic, but abstract pillars and more natural human depictions in the style of the PPN sculpture of a man from Urfa-Yeni Mahalle. The ‘Urfa statue’, regarded as the oldest naturalistic life-sized sculpture of a human, has a face, and its eyes are depicted by deep holes with inset blade segments of black obsidian, but it lacks a mouth. The statue seems to be naked with the exception of a V-shaped necklace or collar. It is not entirely clear, but it seems that its hands are holding a phallus. Legs are not depicted; below the body there is a conical tap, which allows the statue to be set into the ground. From Göbekli Tepe there are several life-sized human heads made of limestone, which probably have been part of similar sculptures originally. The heads seem to have been intentionally broken off the statues and were in many cases deposited next to the T-shaped pillars in the course of refilling the enclosures. While their exact relation to the pillars remains unclear, it seems quite possible to assume that they represent another hierarchical level or another sphere compared to these abstracted pillar-beings. This would be a strong lead to assume a concept of hierarchy in the spiritual realm. The question at hand is, if real life was structured accordingly.
One symptom, and maybe a prerequisite for the evolution of social hierarchy is specialization and division of labor. Göbekli Tepe stands witness to the existence of both. It is hard to imagine that the reliefs on these pillars and the elaborated sculptures were made by inexperienced people. The uniformity of types, the coherent style, the exactness of realization all speak in favor of a fixed canon of motifs and techniques that had to be learned. While transport and erection of the monoliths may have been accomplished in a short time span by a large work force, the artistry seems to hint at highly specialized craft(s). It seems possible that a part of the population had to be set free from subsistence activities and were cared for at least for some time of the year by the others while learning and executing work at Göbekli Tepe. Of course, the intensity and duration of such work periods is hard to apprehend, and their effect may not have been decisive in restructuring a complete society in the short term.
Greenstone buttons from Göbekli Tepe (Copyright DAI, Photos I. Wagner, K. Schmidt).
When trying to infer social hierarchization, archaeologists frequently turn to special treatment of individuals in funerary ritual or to ‚prestige’ items of material culture. At Göbekli Tepe, burials are missing so far, but it is not hard to find ‘special’ items. Looking at the portable material culture, there are spacer beads and buttons, often made of greenstone, zoomorphic pestles or ‚scepters’ of the so-called Nemrik type, elaborately decorated thin walled stone bowls, and, of course, decorated shaft straighteners and small stone tablets. The decorated tablets and shaft straighteners also pose an argument for specialization. In can be assumed that the signs on them were readable, because they repeat images and, more importantly, combinations of images known as well from the pillars, as from objects discovered at other sites in vicinity. They most likely represent a way to fix memories and knowledge of the society creating them in a form intelligible at least to initiated specialists. The challenge addressing these items as individual signs of social distinction at Göbekli Tepe lies in the fact that they come from the enclosures’ filling. They are not found in the contexts of their primary use, and there thus is no possibility to determine whether e.g. the stone bowls, the ‚scepters’ (if this determination is right), or the tablets were the individual property of persons, or part of the paraphernalia of cultic ceremonies. There are some leads though. The buttons and spacer beads, often made from greenstone and most likely part of the personal adornment, do appear frequently in Göbekli Tepe and in settlements with ‚special buildings’ like Nevalı Çori or Çayönü. They seem to be bound to such peculiar contexts and maybe to a group of religious specialists present there.
Nemrik type ‘scepters’ from Göbekli Tepe (copyright DAI, photos N. Becker, T. Goldschmidt, K. Schmidt).
A look at other sites may strengthen this image a little more. The richly furnished burials found at Körtik Tepe [external link], a site partly contemporary with Göbekli Tepe’s Layer III (but apparently starting much earlier) and sharing much of its material culture, situated more to the East in the Tigris region, are very important for understanding early Neolithic social hierarchy. Besides the settlement, at Körtik Tepe more than 450 graves have been discovered. The amount of grave goods differs considerably, there is also a large number of graves without any. Some skeletons show evidence for complex rites prior and posterior to burial, including the decoration of bones with ochre and lime-plaster. Of course, a simple relationship between burial gifts, elaborate grave rites and the social status of the deceased cannot be drawn, as the furnishing of graves also (and sometimes predominantly) is determined by the belief system and values of society or the views of the bereaved on the deceased. The broken objects at Körtik Tepe, in many cases stone bowls, could very well hint at a ritual deposition of equipment used in celebrations at the graves more than at the personal belongings of the dead. Such celebrations may implicitly and in the first place have served the purpose of handling the loss produced by the death for the social group. However, not all individuals seem to have received equal attention, and the excavators also observed that grave goods generally got more elaborated and numerous over time, which they take as a sign of increasing social hierarchization. The graves of Körtik Tepe thus seem to offer tentative evidence for social distinction among groups contemporary with Göbekli Tepe.
Plaquette with depiction of a snake, a human (?) and a bird (Photo: Irmgard Wagner, Copyright DAI).
Fragment of a decorated stone bowl from Göbekli Tepe (Photo. Schmidt, Copyright DAI).
Fragment of a decorated stone bowl from Göbekli Tepe (Photo N. Becker, Copyright DAI).
Most interestingly, also decorated stone plaquettes are part of burials at Körtik Tepe, marking them as possible individual property or signs of the social function of some of the deceased. The exact number of decorated plaquettes from Körtik is not clear, but it seems to be a restricted find group. It is possible that the possession of plaquettes themselves and – probably more important – the knowledge stored on them in abstract and symbolic form was restricted to a certain group of people. This would again hint at specialists in memory, ritual and maybe religion, drawing their importance to the group from memorizing, saving and reproducing crucial knowledge.
Restriction of the access to knowledge and participation in rituals seems to be attestable also at Göbekli Tepe. On a general level, some object classes known from settlements are missing. For example, awls and points of bone are nearly completely absent. The tasks carried out with them probably were not practiced here, and it may well be that the part of the population carrying them out was absent, too. Further, clay figurines are absent completely from Göbekli Tepe. This observation gains importance in comparison to Nevalı Çori, where clay figurines are abundant, missing only in the ‘cult building’ with its stone sculptures and T-shaped pillars. Clay and stone sculptures may thus well form two different functional groups, one connected to domestic space (and domestic cult?) and one to the specialized ‘cult buildings’ – and to another sphere of ritual also evident at Göbekli Tepe. Its iconography is exclusively male, and while evidence for some domestic tasks is missing, there is evidence for flint knapping on a much larger scale than in any contemporary settlement, and shaft straighteners are very frequent, too. Göbekli Tepe could have been a place for just a part of society, for male hunters. At least their ideology seems to be exclusively represented at the site.
Another element of restriction is posed by the enclosures. They are not of a size to accommodate very large groups of people at a time. If we imagine them open to the sky, then a certain public aspect would have to be taken into account, but another possibility is a reconstruction along the lines of largely subterranean buildings accessible through openings in the roof, similar to the kivas of the North-American Southwest, rather unimpressive and hidden from the outside. It is a distinct possibility that only a small group of religious specialists had access to the enclosures.
As mentioned above, at Göbekli Tepe there is evidence for constant construction activity. In Addition to the erection of new monuments, activities took also place in already existing enclosures. New circle walls were added, and the re-use of pillars from other, dismantled enclosures is a frequent phenomenon. The general impression is that working at Göbekli Tepe in itself was of central importance to PPN people. One reason for this may lie in the strengthening of social cohesion such activities in combination with feasting (maybe preluded by communal hunts) bring about, but building and rebuilding Göbekli Tepe – and maybe other sites like it – may also have been a way to gain and maintain social power and influence by those possessing the knowledge necessary to construct and meaningfully decorate the ‘special buildings’.
Complementing the element of cohesion, there may also be signs of competition at Göbekli Tepe. The enclosures vary in size, in the density of iconography, and ultimately in the amount of labor invested. Also, as mentioned above, different species of animals dominate in different enclosures. That observation opens up the possibility of the circles being constructed by different groups. The possibility of competitive behavior among those groups, or individuals leading them, can thus not be ruled out.
The large-scale feasting at Göbekli Tepe seems partly to have had the character of work feasts to accomplish a common, supposedly religiously motivated task. The enclosures erected there convey the impression of gatherings through their layout, and, while signs for social stratification exist, this aspect – the gathering of people for a collective aim – should not be lost from sight completely in favor of competition and power acquisition by individuals. In any case it would seem that competition for influence, at least at Göbekli Tepe, was not open to everyone who was able to throw a large feast. Access to and command of knowledge crucial to society’s identity and well-being may have served as a social barrier hindering individuals to step outside of the given limits, while being the basis for power over the work-force of others for a restricted group of people. In conclusion, the notion of a ‘transegalitarian society’ with beginning social hierarchization on several levels brought forward by Brian Hayden seems to fit the image emerging from sites like Göbekli Tepe and Körtik Tepe.
It may be premature however to move beyond the simple observation of the early evolution of social hierarchy. We should take the limits of the momentarily available archaeological evidence into account. Göbekli Tepe is a very special site in the context of cult, the perpetuation of cultural knowledge and, maybe, ultimately religion. This is an important aspect of a society, but it is just one facet of many. Feasting in a cultic context away from settlements may have been a way to gain influence in the early Neolithic world, but at the moment it is hard to integrate into a complete picture. Complementary evidence from settlements is needed to understand how far social differentiation already influenced all aspects of life in the earlier PPN, how stable power aggregated by an individual might have been and how far his authority over others may have reached. At Göbekli Tepe, the collective aspect of accomplishing work through feasting generally seems to hint at a more indirect and maybe fragile form of power connected to a certain task.
We are grateful the General Directorate of Antiquities of Turkey for kind permission to excavate this important site. Research at Göbekli Tepe is funded by the German Archaeological Institute (DAI) and the German Research Foundation (DFG). This text is partly based upon the following work: O. Dietrich, J. Notroff, K. Schmidt. 2017. Feasting, social complexity and the emergence of the early Neolithic of Upper Mesopotamia: a view from Göbekli Tepe. In: R. J. Chacon, R. Mendoza (eds.), Feast, Famine or Fighting? Multiple Pathways to Social Complexity. New York: Springer, 91-132.
Göbekli Tepe is often compared with other megalithic architecture. Stonehenge is an example here, others include the temples of Malta, the Taulas of Menorca, or the Moai of the Easter Islands. And fairly often, people also construct or believe in direct relations between these sites.
I believe this partly happens because people tend to categorize things in relation to other things they already know. Especially Stonehenge – for many people the iconic example for megaliths par se – can be found in every popular history book, making such comparisons with other sites with large standing stones, some of them decorated with reliefs, easy. But there is a little more to it. I remember that my schoolbooks used to invoke the idea of a somehow interrelated Neolithic „Megalithic Culture“ that spread throughout Europe by migration. This was in the later 1980ies. Of course by this time the diffusionist view on the spread of megaliths had long been discredited by Colin Renfrew, i.a. based on radiocarbon dates (you can see him talk about this here – external link). But textbooks just hadn’t noticed what was going on in academia. This is, by the way, a problem that archaeologists should address in some way also today.
But back to Göbekli Tepe. As we really get a lot of inquiries regarding possible interrelations of important megalithic sites, I thought I should post a short checklist here to show how different these sites really are. So here they are, in chronological order; please note that I am just writing down the main points from memory, if you have further questions please post them in the comments.
Göbekli Tepe, Enclosure C, illustrating the characteristic layout of the older buildings (copyright DAI, photo K. Schmidt).
Location: southeastern Turkey, on the highest point of the Germus mountain range.
Main characteristics: The oldest layer III (10th millenium BC) is characterized by monolithic T-shaped pillars weighing tons, which were positioned in circle-like structures. The pillars were interconnected by limestone walls and benches leaning at the inner side of the walls. In the center of these enclosures there are always two bigger pillars, with a height of over 5m. The circles measure 10-20m. The T-shape of the pillars is clearly an abstract depiction of the human body seen from the side. Evidence for this interpretation are the low relief depictions of arms, hands and items of clothing like belts and loinclothes on some of the pillars. Often the pillars bear further reliefs, mostly depictions of animals, but also of numerous abstract symbols. Layer III is supraposed by layer II, dating to the 9th millenium BC. This layer is not characterised by big round enclosures, but by smaller, rectangular buildings. The number and the height of the pillars are also reduced. In most cases only the two central pillars remain, the biggest measuring around 1,5m.
Miniature madel of a Maltese temple from Mġarr, Museum of Valletta (Photo: O. Dietrich).
Temples of Malta
Location: Malta and Gozo, islands in the Mediterranean Sea, temples are spread widely, sometimes forming clusters.
Built / used between: The Neolithic and the Bronze Age. However, the actual ‘Temple Period’ falls within the 4th millennium BC and the 3rd millennium BC. Temples were constructed using stone tools.
By: The local population of these islands, evidence for external contact is rare.
Main characteristics: The temples are made of limestone orthostats forming walls. They usually have an oval forecourt and a facade with an entrance made up of three megaliths, of which two are supporting the third, forming a trilithon. Inside is a passageway of similar construction leading to an open paved space flanked by apses. Decorations inside the temples include spiral motifs, animals and surfaces covered entirely with drilled holes.
Further reading: For an easily accessible and well written overview: Trump, D.H. 2002. Malta: Prehistory and Temples. Midsea Books: Malta. Also, check out the Website of the UNESCO World Heritage List entry [external link].
Stonehenge, features of all construction phases (Drawn by en:User:Adamsan, CC BY-SA 3.0, Wikimedia Commons).
Location: Wiltshire, England.
Built / used between: several building phases between 3100 and 1600 BC.
By: People from a wider catchment area, some of the raw material was transported over vast distances, e.g. the so-called bluestones from nowadays Wales, metal tools available during the later phases.
Main characteristics: The iconic view of Stonehenge shows a ring of standing stones around 4 m high, partly still forming trilithons. But Stonehenge has a highly complex building history that includes many changes to the layout of the site, accumulating to two megalithic stone rings and two orthostat arrangements surrounded by wooden posts and earthworks. Further, Stonehenge is part of a Neolithic/Bronze Age cultural landscape marked by earthworks and burial mounds.
Further reading: Mike Parker Pearson is the person to ask about Stonehenge and here is a great overview article that´s also freely accessible: Parker Pearson, M. 2013. Researching Stonehenge: Theories Past and Present. Archaeology International. 16, 72–83. DOI: http://doi.org/10.5334
Taula of Trepuco (Juan Costa Archiv, CC BY-SA 3.0, Wikimedia Commons).
Location: On the Balearic island of Menorca.
Built / used between: roughly between 1000 and 300 BC.
By: The local, so-called Talaiotic Culture, which is restricted to Menorca.
Main charateristics: Taulas (meaning tables) are formed of a vertical pillar (sometimes made up of several stones) on which another stone rests horizontically. They are around 4 m high and usually stand within u-shaped buildings.
Further reading: There is not so much published about the Taulas in English and available to access freely online, if you are able to read Spanish, this artcle may be a good start: Daniel Albero Santacreu, D.A. 2009-2010. Análisis arquitectónico de los recintos de taula de la isla de Menorca: significación técnica y simbólica de los parámetros constructivos. Mayurqa 33, 2009-2010: 77-94 [external link].
Moai at Ahu Tongarik (Rivi, CC BY-SA 3.0, Wikimedia Commons).
Location: Easter Island, Polynesia.
Built / used between: 1250-1500 AD.
By: the Polynesian colonizers of the Easter island.
Main charateristics: Monolithic human figures with facial features, arms/hands, up to 10 m high and integrated into ceremonial sites The letter consist of a levelled plaza, from which a ramp led up to a rectangular platform, where the moai stood.
Further reading: A classic is Routledge, K. 1919. The mystery of Easter Island. The story of an Expedition. London: Hazel, Watson & Winey [external link]. There isa vast amount of literature though, and also an ongoing research project by the German Archaeological Institute [external link].
The sites discussed here may have had similar social functions as centers for gatherings, expressions of belief systems etc. for the societies that built them. But I believe that this short comparison also shows clearly that we are dealing with very different sites indeed, evolving in different timeframes and regions, and rooted in a very specific local cultural background each. Their architecture is hardly comparable. Superficial similarities like the T-shape of GT´s pillars and the Taulas can be explained much better by a similar function, e.g. as roof supports, than by direct interconnections between the builders over large chronological and spatial distances.
Recently, I stumbled upon a blogpost by Graham Hancock [external link]. I was looking for something completely different, i.e. the “fallout” of the rather unfortunate meteor theory proposed by two researchers from Edinburgh in April. What I found however sent me off in a completely different direction. As it is a prime example how false interpretations of images arise, and how they could have been prevented right from the start, I thought I should write a few words about that blog post here.
In his short text, Hancock explains that an independent researcher, while browsing the images in the online database of the ‘Cuneiform Digital Library’ [external link], found a depiction of the enclosures of Göbekli Tepe with their iconic T-shaped pillars. On a seal impression from Susa, dating to the Uruk V period. The settlement phase Uruk V constitutes together with Uruk IV the Late Uruk Period. The details of the absolute chronology of this period, which sees the invention of writing (i.e. proto-cuneiform script starting from Uruk IVa) and the cylinder seal, is still under debate, but a general date between 3500-3100 BC seems to be safe. Göbekli Tepe is currently dated between c. 9500-8000 BC. So, there is some chronological and regional distance between the sites (Susa lies in nowadays Iran). “Nice mystery here”, to cite Hancock. But let’s have a critical look at the evidence, which is always a good idea when doing science.
Hancock´s post refers to a fragment of a cylinder seal impression, for which the ‘Cuneiform Digital Library’ database gives a scanned black and white photo and some background information, like the material (clay), the collection (Louvre, Paris) and the primary publication (MDP 43, 676). It is also clear that the image is rotated – most likely accidentally – by 180° compared to the original publication (the number is upside down). And there they are, the two T-shaped pillars encircled by an oval, shown two times. A perfect abstract depiction of a round building from Göbekli Tepe´s older layer, as it seems. Alright, the pillars inside the perimeter wall are missing. But who cares? It could be an abstracted depiction of something a few millennia older but apparently still very well known.
The seal impression is fragmentary and highly damaged. It is obvious that the original image was more complex. If we turn the image correctly and look a little closer, in front of the left Ts, which now do not resemble Ts anymore, there is an indication of some more depictions that are hard to identify on the b&w photograph. That is why finds were and mostly still are drawn in archaeology, and in any case described extensively. And where to find a drawing and description of the find? In MDP 43 of course.
I perfectly understand that this is the point at which those with a general interest in archaeology and browsing through an online database might be lost. MDP refers to the series “Mémoires de la Délégation Archéologique en Iran”. Why the “P”? Because the series was first called “Mémoires de la Délegation en Perse” and the abbreviation never changed. If we look the find up in volume 43 of this series, written by Pierre Amiet and dealing with “Glyptique Susienne”, the scene is described as “two figures sitting on the left, on curved seats, in front of apparatuses made up of two supports with square bases and an elongated oval element”. And the drawing of the sealing shows just that. The persons are touching this “oval element” with their hands. The publication has some more depictions of this kind on sealings, and at least some, such as MDP 43, nr. 673 or 674 are less fragmentary. It becomes immediately clear that we are not dealing with a depiction of T-shaped pillars, but of two supports with square feet at the bottom and a knob at the top, connected by an oval.
The depictions of people interacting with this “apparatus” are part of a group of sealings that shows people at work, and some of the images with the supports strongly hint in the direction of weaving (esp. nr. 673), the “oval” most probably being the depiction of a thread.
So, absolutely no “nice mystery here”. Just a misinterpretation of a highly fragmentary depiction. While dealing with prehistoric imagery things like that can happen quickly. Because the human brain interprets things in relation to former experiences and knowledge. In the case at hand, I have seen images of Göbekli Tepe´s round to oval enclosures with their iconic pair of monumental T-shaped pillars. Then I see two T-shapes on a scan of a b&w image of a highly-weathered fragment of a clay seal impression. And immediately make a connection between the two. Science starts when I challenge that superficial connection in the way described above with some simple questions that work not only in the case at hand:
General chronological and cultural-historic reasoning: What is the cultural background of the artefact I am looking at and how old is it? How likely might it be that the people making it depict an object or a site millennia older and not something well-known to them?
Iconographical reasoning: How was the way of depicting things in that particular period, may the shape I am looking at fit the way of representing certain devices / objects / things? What else might be depicted that perfectly fits the cultural background / everyday activities of the people making the artefact?
Challenging the evidence / its documentation: Is the depiction fragmentary or hard to evaluate for other reasons? What kind of documentation is available to me? Does it allow me to fully comprehend what is depicted? Or do I need further information before I can make up my mind?
Go to the sources. Archaeological artefacts, or artefacts similar to the one at hand are usually published somewhere, and these publications may hold further information and better images. It may be tricky to identify the available sources.
So, finally: Why not ask an archaeologist, some of us are nice people willing to help!
Pierre Amiet, Glyptique Susienne. Des origins à l´ époque des Perses Achéménides. Cachets, sceaux-cylindres et empreintes antiques découverts à Suse de 1913 à 1967. Mémoires de la Délégation Archéologique en Iran XLIII (Paris 1972).
Just back from this year´s Warfare, Environment, Social Inequality and Peace Studies (WESIPS) Conference in Seville, organized by Richard and Yamilette Chacon at the Center for Cross-Cultural Study (Spanish Studies Abroad). After a very inspirational conference and a stay in a very nice city, I thought I´d share a (very) short version of my talk. So here it comes.
The last post-Ice Age hunter-gatherer communities of the Near East have long been seen as loosely organized and low-hierarchical. The last decades of research have revealed a number of sites which considerably change this image. Nearly every site excavated at the appropriate scale shows a spatial division of residential and specialised workshop areas, and special buildings or open courtyards for communal and ritual purposes. Thus there is strong evidence for a degree of social complexity that was hitherto quite unsuspected.
While there is continued dispute over the question of organized warfare in the earliest Neolithic of the Near East, recent research has provided clear evidence of inter-personal and probably inter-group violence and beginning social inequality. But there are also signs of evolving strategies for conflict mitigation and cooperation. A key site to understand this aspect of early Neolithic social practises is Göbekli Tepe, a mountain sanctuary in southeastern Turkey.
Göbekli Tepe is situated on the highest point of the Germuş mountain range overlooking the Harran plain. The site lies on an otherwise barren limestone plateau. The tell has a diameter of around 300 m and is characterized by several mounds divided by depressions. At the highest point, Göbekli Tepe has about 15 m of stratigraphy. Work at the site started in 1995 under the direction of Klaus Schmidt and concentrated in the first ten years in the southeastern depression. Starting from 2007 further excavation areas were opened on the soutwestern and nortwestern hilltop, and in the northwestern depression.
All areas excavated so far show a similar general stratigraphic sequence. The oldest layer III is characterized by monolithic T-shaped pillars, which were positioned in circle-like structures. The pillars were interconnected by limestone walls and benches leaning at the inner side of the walls. In the centre of these enclosures there are always two bigger pillars, with a height of over 5m. The circles measure 10-20m. This layer dates to the Pre-Pottery Neolithic A and maybe reaches the earliest PPN B, between 9600-8800 in absolute dates. The buildings of layer III were intentionally beckfilled at the end of their uselifes. Layer III is supraposed by layer II, dating to the early and middle PPNB, the time between 8800-8000 cal BC. This layer is characterised by smaller, rectangular buildings. The number and the height of the pillars are also reduced.
The most impressive element of Göbekli Tepe´s architecture are the T-shaped pillars. The T-shape is clearly an abstract depiction of the human body seen from the side. Evidence for this interpretation are the low relief depictions of arms, hands and items of clothing like belts and loinclothes on some of the central pillars. There is a clear hierarchy of pillars inside the enclosures. The central pillars are up to 5,5 m high, they have the already described anthropomorphic elements. The surrounding pillars are smaller, but more richly decorated with animal reliefs than the central ones. They are always „looking“ towards the central pillars, and the benches between them further amplify the impression of a gathering of some sort. The input of work in the constructions seems enormous.
At Göbekli Tepe, the Neolithic quarry areas are well known. They lie on the limestone plateau immediately adjacent to the site. The maximum distances that had to be covered were 600-700m. However, the terrain is uneven and sloping upwards, and the megaliths are of impressive size. The input of manpower seems pretty high.
And another aspect is of importance. It seems that the enclosures were never really finished. There is permanent construction, deconstruction, and reconstruction activity at Göbekli Tepe, and the intensity of work indicates something else than pure maintenance. Most likely the act of working at the site was central to the builders, and repeated periodically, whether or not a real need existed. For example, in the inner ring of Enclosure C there is barely one pillar standing in its original position.
As Göbekli Tepe has no traces of settlement, there is no possibility of a direct evaluation of the number of people present on-site. If we turn to ethnographic data, core group sizes of 25-50 persons for fully mobile hunter-gatherers, and a little higher numbers for semi-sedentary residential groups are suggested. The number of people one group could spare for construction work of the amplitude visible at Göbekli Tepe is definitely too small. It seems possible that several groups had to collaborate for a period of time to carry out building activities and to supply for the builders. And there actually is vast evidence for people congregating at Göbekli Tepe.
An answer to the question why these people congregated for work at Göbekli Tepe comes from the enclosure´s fillings. The material used as backfill consists of limestone rubble from the quarries nearby, flint artefacts and animal bones smashed to get to the marrow, clearly the remains of meals. Enclosure D alone, the largest of the four circles, comprised nearly 500 cubic meters of debris. As traces of permanent settlement are absent, this readily leads to the idea of large, ritualized work feasts rooted in the belief systems of the people congregating there. This concept was explored in-depth by Dietler and Hayden and provides a good working hypothesis to explain the at least temporary supra-group cohesion generated for collective work.
Archaeozoological data further strengthens the image of large feasting events at certain times of the year. At Göbekli, Gazelle is the major meat animal [external link]. As this species is migratory, a large scale supply of meat was possible in late autumn, when there would also be rain water available after the long, dry summer. The second important species is aurochs, an animal all year round available in the meadows surrounding the Germus mountains. A single auerochs can provide enough meat for a smaller group of people. Of course both sources could have been used supplimentarily. But why hunt dangerous aurochs when there is an abundance of Gazelle? It seems more likely, that aurochs was targeted at occasions different from the work feasts, and maybe more related to the enclosures´ functions which seem to be related to distinct groups of people.
The enclosures excavated so far show a variation in the animal species depicted prominently in the iconography of each circle. While in Enclosure A the snake prevails, in Enclosure B foxes are dominant, for example. In Enclosure C boars take over and in Enclosure D birds are playing an important role, while Enclosure H has lots of wildcats. Interpreting these differences as figurative expression of community patterns could probably hint at the different groups building the particular enclosures. The character of these entities remains open to discussion at the moment. There are some clues however. Restriction of the access to knowledge and participation in rituals seems to be attestable at Göbekli Tepe. On a general level, some object classes known from settlements are missing. For example, awls and points of bone are nearly completely absent. The tasks carried out with them probably were not practiced here, and it may well be that the part of the population carrying them out was absent, too. Further, clay figurines are absent completely from Göbekli. This observation gains importance in comparison to Nevalı Çori, where clay figurines are abundant, missing only in the ‘cult building’ with its stone sculptures and T-shaped pillars very similar to Göbekli Tepe. Clay and stone sculptures may thus well form two different functional groups, one connected to domestic space (and cult?) and one to the specialized ‘cult buildings’ – and to another sphere of ritual also evident at Göbekli Tepe. Its iconography is exclusively male.
The pillars are often richly decorated. But in some cases, the imagery obviously is going far beyond mere decoration. The narrative character of several depictions in flat relief is underlined by Pillar 43, whose whole western broad side is covered by a variety of motifs. This could be a hint to one aspect of the enclosure´s functions – as a repository for tales, maybe myths crucially important to the groups building them. It is also possible to identify the general theme these stories – and the enclosures – are related to. A recurring motif on reliefs is human heads between animals, or, as already seen on pillar 43, headless humans. The special treatment and the removal of skulls is well-attested for the PPN death ritual. A connection with death or ancestor cult of Neolithic groups seems to be the most probable function of Göbekli Tepe´s enclosures. With their rich decoration, they are monuments in stone of important aspects of these groups´ identities, which were reinforced during ritually repeated events that included feasting.
To conclude, it seems that at Göbekli Tepe we see several social phenomena interact. Religious belief generated a need for constant costly building activity, which could only be accomplished by cooperation, possibly of members of different groups. Cooperation was ensured by large work feasts, that produced social cohesion. These groups reinforced their identities through – most likely – unpleasant initiation rituals held within the circular buildings. The character of these groups, marked by emblematic animals and important aspects of mythology carved and preserved in stone, remains unclear at the moment. Clans or tribes would be a possibility, but also other organizational structures, that cross-cut those based on ancestry are a distinct possibility. As only male hunters become visible at Göbekli Tepe, and exclusion as well as initiation seem to have played a major role, secret societies are another possibility. Festing and ritual thus emerge as major incentives for cooperative action during the earliest Neolithic.
Some points of this talk have already been discussed more extensively here:
Oliver Dietrich, Jens Notroff, A sanctuary, or so fair a house? In defense of an archaeology of cult at Pre-Pottery Neolithic Göbekli Tepe. In: Nicola Laneri (eds.), Defining the Sacred: Approaches to the Archaeology of Religion in the Near East. Oxford: Oxbow (2015), 75-89.
Oliver Dietrich, Jens Notroff, Klaus Schmidt, Feasting, Social Complexity and the Emergence of the Early Neolithic of Upper Mesopotamia: A View from Göbekli Tepe, in: R. J. Chacon and R. G. Mendoza (eds.), Feast, Famine or Fighting? Multiple Pathways to Social Complexity. Studies in Human Ecology and Adaptation 8, New York: Springer (2017), 91-132.
Jens Notroff, Oliver Dietrich, Klaus Schmidt, Gathering of the Dead? The Early Neolithic sanctuaries of Göbekli Tepe, Southeastern Turkey, in: Colin Renfrew, Michael Boyd and Iain Morley (Hrsg.), Death shall have no Dominion: The Archaeology of Mortality and Immortality – A Worldwide Perspective. Cambridge: Cambridge University Press (2016), 65-81.
On the possibility of secret societies in the Neolithic:
Brian Hayden, Corporate Groups and Secret Societies in the Early Neolithic. A Comment on Hodder and Meskell. Current Anthropology 53, 1, 2012, 126-127.
On gazelle at Göbekli Tepe:
Lang, C., Peters, J., Pöllath, N., Schmidt, K., Grupe, G. 2013: Gazelle behavior and human presence at early Neolithic Göbekli Tepe, SE Anatolia. Journal of World Archaeology 45, 3, 410-429.
And, on feasting in archaeological contexts:
Dietler, Michael and Brian Hayden (editors) (2001). Feasts: Archaeological and Ethnographic Perspectives on Food, Politics, and Power. Washington, DC: Smithsonian.
In 2009, the last meter of filling was removed from Enclosure D, the best preserved building of Göbekli Tepe’s older Layer III. We already knew that during the refilling of the enclosures special objects, like heads of anthropomorphic sculptures, were deliberately deposited next to the pillars. Thus, special attention was payed when work progressed in these areas.
Fragment of a relief showing a separated human head among animals. Found next to one of the central pillars of Enclosure D (Photos: N. Becker, Copyright DAI).
Immediately to the north of Pillar 18, one of the central pillars of the enclosure, soon a very large stone slab appeared. Its lower side showed several reliefs. When the slab was finally turned around after documentation of the find situation, a very detailed scenery became visible.
Stone slab from Enclosure D, the depiction of a human head is marked in red (copyright DAI, photo N. Becker).
The slab is fragmentary. The preserved imagery is dominated by a large predator, which can tentatively be identified as a hyena. Behind it, a vulture with a very pronounced beak spreads its wings. Above the vulture, the legs of a third animal are visible, while legs and body of a fourth animal are depicted above the hyena. Right at the breaking edge of the slab one further image can be spotted: an apparently separated human head. Whether the head was part of a narrative scene with the animal depictions, remains unclear. In any case, from Göbekli Tepe – and other PPN sites – a number of images showing human heads in the claws of birds or quadrupeds are known. A similar depiction thus wouldn’t be a surprise.
Çiğdem Köksal-Schmidt, Klaus Schmidt, Yeni buluntular ve bulgularla. Göbekli Tepe. Neue Funde und Befunde, Arkeoloji ve Sanat – Journal of Archaeology and Art 137, 2011, 53-60.
Nico Becker, Oliver Dietrich, Thomas Götzelt, Cigdem Köksal-Schmidt, Jens Notroff, Klaus Schmidt, Materialien zur Deutung der zentralen Pfeilerpaare des Göbekli Tepe und weiterer Orte des obermesopotamischen Frühneolithikums, ZORA 5, 2012, 14-43.
